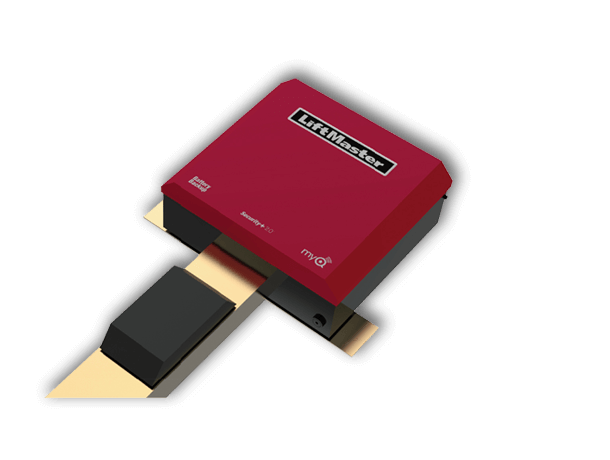

HCTDCUL
![LiftMaster HCTDCUL electric garage door opener](https://www.garaga.com/sites/default/files/00_Garaga/Products/Commercial/GarageDoorOpenerModels/HCTDCU.png)
Features
The HCTDCUL model, as manufactured by LiftMaster, is the ultimate high-traffic door and gate opener for apartment houses and low-profile applications. It is meeting the challenge of today's high cycle applications by providing the ultimate in durability, quiet operation and security.
- Single phase: 120 V and 230 V
- Horsepower: DC motor, 24DC, 500mA, continuous-duty motor
- Minimum extra headroom required: 4 inches (102 mm)
- Security system: Security+ 2.0, technology that utilizes a tri-band signal
- Battery backup (7Ah): 2 batteries providing up to 112 cycles or up to 24 days.
- Specifically engineered to meet the needs of apartment houses, condominiums and low-clearance installations, the model HCTDCUL delivers unsurpassed safety, dependability and quiet operation. In a class by itself, the HCTDCUL is a heavy-duty, high-traffic operator designed with many exclusive features, including a Security+® receiver, built-in electronic reversing device, heavy-duty track and keyed trolley assembly.
- Trolley type door opener
- Total length installed:
- 8 ft rails: 121.5 inches
- 10 ft rails: 145.5 inches
- 12 ft rails: 169.5 inches
- The HCTDCUL is designed for installation in even the tightest applications. At only 8 inches high, it's up to 10 inches shorter than other overhead operators. In addition, it's extremely quiet so as not to disturb tenants living directly above the garage. For added safety, the HCT includes a key release feature for instant access in case of power failure. And all components are fully enclosed to greatly reduce the risk of injury.
- Advanced control board
- Electronic reversing device
- Built-in radio receiver
- Noise isolators
- Trolley assembly and key release
- DC motor, C-mounted continuous cycle motor
- Digital motor protection.
- Travel time is adjusted by a precision mechanical device and electrical limit switch system.
- Integrated loop detectors.
- Board includes electronic power management with overcurrent shutdown and automatic recovery.
- Instant reversing parking gate Leeson Motor.
- Gear drive system lubricated in an oil bath.
- C-mounted continuous cycle motor.
- Smooth-gliding trolley
- Heavy-duty rubber isolators help prevent noise and absorb vibration.
- Adjustable timer can be set up to 180 seconds.
- Homelink compatible.
- UL and CSA listed.
- 5-year warranty.
Standard security systems
Your security, our priority!
Security+®
The HCTDCUL is equipped with a Security+® rolling code receiver. With every activation, Security+® transmits a brand-new code, one of over 100-billion codes, never to be repeated.
Key release
The HCTDCUL includes a key release feature for instant access in case of power failure. And ail components are fully enclosed to greatly reduce the risk of injury.
Electronic reversing device (ERD)
Auto-reverse and safety alarm system come standard. If the door or gate ever comes in contact with a vehicle while closing, it re-opens. If it contacts a vehicle while opening, it stops, reverses 4 to 6 inches and stops again.
Safety alarm
If the door or gate hits an object twice while opening or closing, the system will shut down and the alarm will sound for five minutes. After five minutes, the system will automatically reset itself. To reset within the five-minute period, the manual reset button must be activated.
Warning
Garage doors and garage door openers can be dangerous if not installed and verified by a professional and not used properly. Children must be supervised by an adult when they are inside or in proximity of the garage door system.

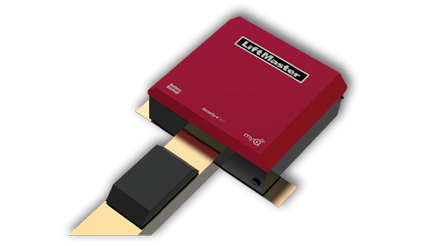

Included in package
![LiftMaster HCTDCUL garage door opener](https://www.garaga.com/sites/default/files/00_Garaga/Products/Residential/Openers/IncludedPackage/HCTDCU.jpg)
- Saftey photoelectric sensors (CPSUN4G)
- On-board receiver
- Rail according to door height (in separate packaging)
- 2 backup batteries (29-NP712)
* Remotes and wall station optional
Optional door opener accessories
3-button commercial wall station (02103)
1-button wall station / reset switch APBS1 (K76-33672)
3-button remote control (893MAX)
Commercial Access Receiver (STAR1000)
Single entry access control keypad and proximity reader (KPR2000)
Red/Green traffic light (RGL24LY)
Pneumatic Sensing Edge Kit with exterior air switch (655202 or 655302)
Microwave motion sensor (50-HERK2)
Encrypted DIP single button Remote Control (811LMX)
